Rectangular power connector featuring 2 male contacts with nickel-plated bronze construction. This straight plug offers a 3mm pitch and 5A current rating, suitable for panel or cable mounting. Constructed from black polyester with a UL94 V-0 flammability rating, it operates within a temperature range of -40°C to 105°C and supports up to 250V AC/DC. Approvals include UL, CSA, and TUV, with RoHS compliance.
Package0201
Voltage Rating250V
Current Rating5A
MountingPanel, Cable
Quick Jump:
Technical Specifications
Molex 43640-0201 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Body Material | Polyester |
| Package/Case | 0201 |
| Color | Black |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Nickel |
| Current Rating | 5A |
| Depth | 24.53mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 3.86mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 6.85mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Panel, Cable |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Pitch | 3mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43640 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43640-0201 Datasheet
Download the complete datasheet for Molex 43640-0201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

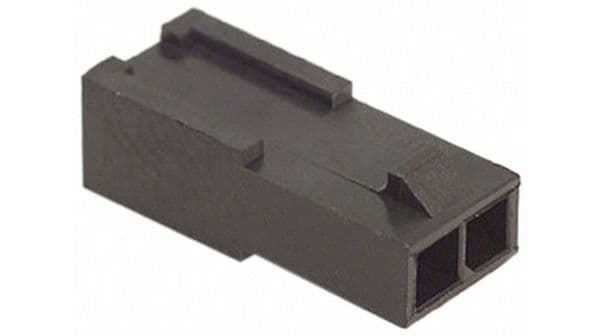

Product Images
