3-way, single-row, male connector housing for panel or cable mount applications. Features a 3mm pitch and straight orientation, with a 2.5A current rating and 250V AC/DC voltage rating. Constructed from black polyester material with bronze contacts plated in nickel. Rated UL94 V-0 for flammability and operates within a temperature range of -40°C to 105°C.
Voltage Rating250V
Current Rating2.5A
MountingPanel, Cable
Quick Jump:
Technical Specifications
Molex 43640-0300 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Nickel |
| Current Rating | 2.5A |
| Depth | 24.53mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 3.86mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 9.85mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Panel, Cable |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43640 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43640-0300 Datasheet
Download the complete datasheet for Molex 43640-0300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

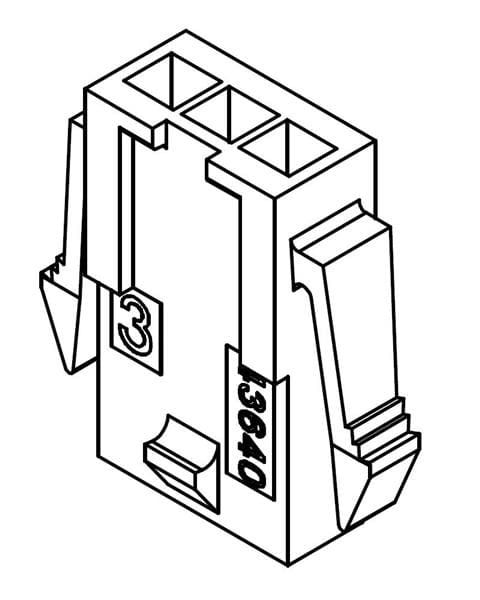

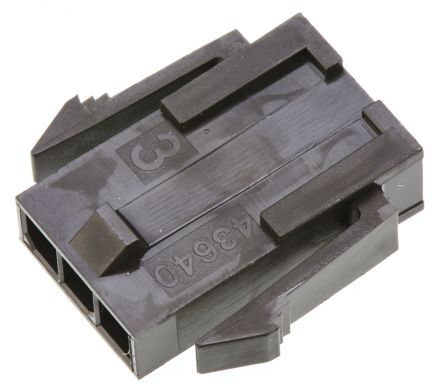

Product Images
