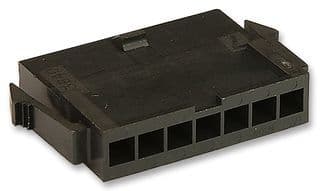

7-position, 3mm pitch plug connector with male pin contacts. Features a straight, single-row configuration and a black housing. Rated for 5A current and 250.25kV DC voltage, operating between -40°C and 105°C. Designed for panel, snap-in, and cable mounting with crimp termination.
Current Rating5A
MountingPanel, Snap in, Cable
Quick Jump:
Technical Specifications
Molex 43640-0700 technical specifications.
General
| Color | Black |
| Contact Type | Male Pin |
| Current Rating | 5A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 3.86mm |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 21.9mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Panel, Snap in, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 3mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Fit 3.0™ 43640 |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43640-0700 Datasheet
Download the complete datasheet for Molex 43640-0700 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
