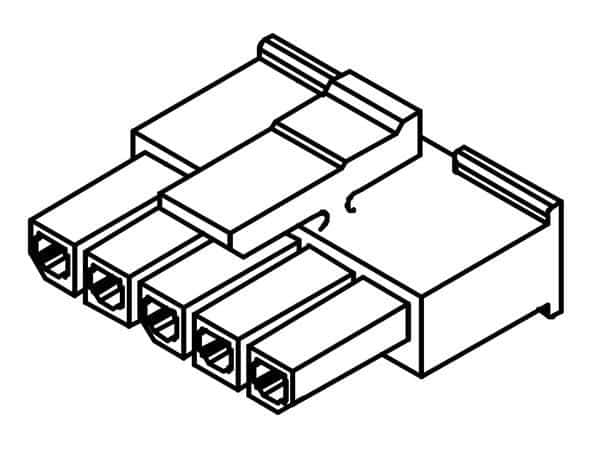

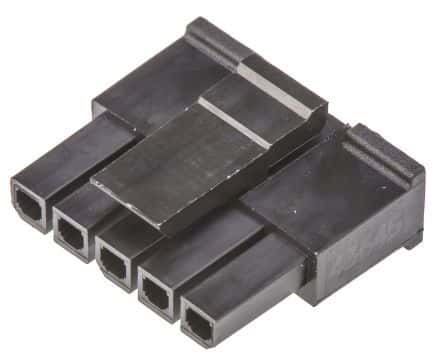

5-position, 1-row female receptacle connector with a 3mm pitch and straight orientation. Features a 5A current rating and 600V voltage rating, with a black insulator and housing. Designed for crimp termination and cable mounting, this connector operates within a temperature range of -40°C to 105°C and boasts UL94 V-0 flammability. It is lead-free and RoHS compliant, with UL, CSA, and TUV approvals.
Sign in to ask questions about the Molex 43645-0500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 43645-0500 technical specifications.
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Gender | Female |
| Current Rating | 5A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Height | 5.3mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 15.85mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43645 |
| Termination | Crimp |
| Voltage Rating | 600V |
| RoHS | Compliant |
