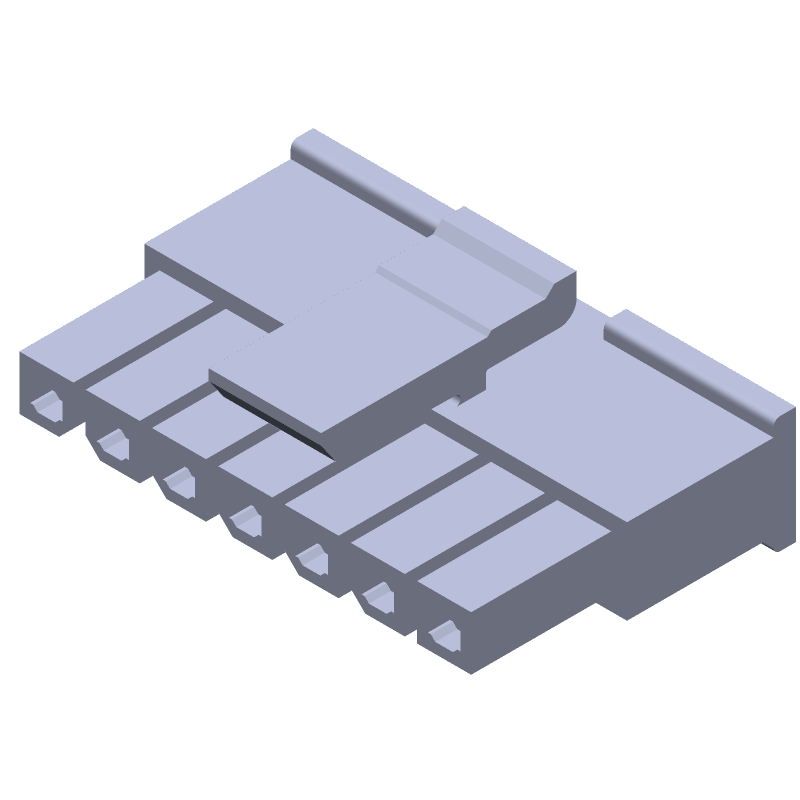

7-circuit, 1-row female receptacle connector with a 3mm pitch and straight orientation. Features a 5A current rating and 600V voltage rating, with a black insulator and housing. Designed for crimp termination, this receptacle is UL94 V-0 flammability rated and operates between -40°C and 105°C. It is lead-free, RoHS compliant, and UL, CSA, and TUV approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 43645-0700 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Gender | Female |
| Current Rating | 5A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Height | 5.3mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 21.85mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Circuits | 7 |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Fit 3.0 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 5.3mm |
| RoHS | Compliant |
