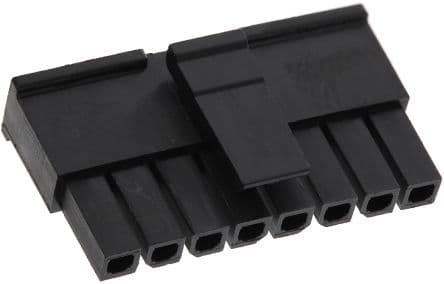

8-position, 1-row female plug and socket connector with 3mm pitch. Features a 5A current rating, straight orientation, and crimp termination. Constructed with a black housing, it operates within a -40°C to 105°C temperature range and boasts UL, CSA, and TUV approvals. This lead-free component is RoHS compliant and rated UL94 V-0 for flammability.
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Molex 43645-0800 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Gender | Female |
| Current Rating | 5A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Height | 5.3mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 24.85mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Fit 3.0 |
| Termination | Crimp |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43645-0800 Datasheet
Download the complete datasheet for Molex 43645-0800 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
