3-circuit, male, rectangular power connector with gold-plated brass contacts. Features a 3mm pitch, 5A current rating, and 600V voltage rating. Designed for surface mount termination with a vertical orientation. Operating temperature range from -40°C to 105°C. Low halogen and RoHS compliant.
Voltage Rating600V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 43650-0325 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 5A |
| Depth | 5.57mm |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Length | 16.65mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1800 |
| Packaging | Tape and Reel |
| Pitch | 3mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43650 |
| Termination | SMD/SMT |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43650-0325 Datasheet
Download the complete datasheet for Molex 43650-0325 to view detailed technical specifications.
No datasheet is available for this part.

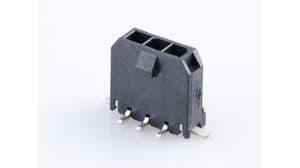

Product Images
