4-circuit, 4-contact, single-row, female receptacle power connector with a 3mm pitch. Features brass contacts with gold plating, a 5A current rating, and a 250V voltage rating. Designed for vertical, surface mount and through-hole termination with a black insulator and natural housing color. Operates within a temperature range of -40°C to 105°C and is RoHS compliant.
Voltage Rating250V
Current Rating5A
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications
Molex 43650-0416 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 5A |
| Depth | 6mm |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Height | 7.6mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 53.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Surface Mount, Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 2040 |
| Packaging | Tray |
| Pitch | 3mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | 43650 |
| Termination | Through Hole |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43650-0416 Datasheet
Download the complete datasheet for Molex 43650-0416 to view detailed technical specifications.
No datasheet is available for this part.

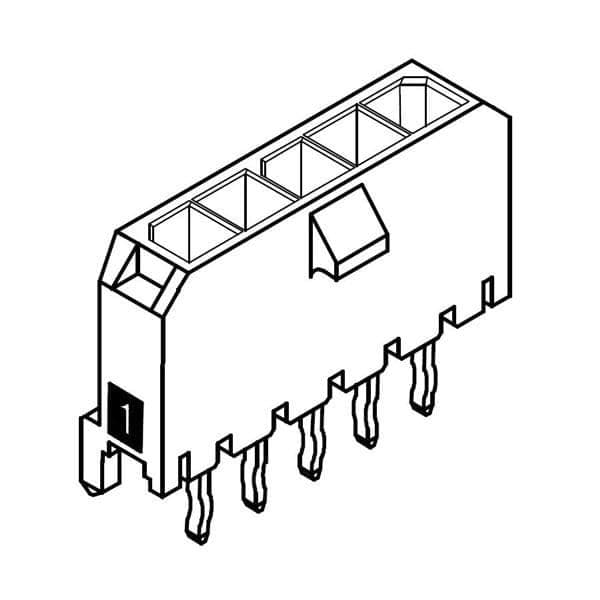

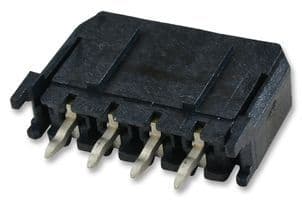

Product Images
