6-circuit, 1-row, female receptacle power connector with a 3mm pitch. Features brass contacts with tin plating, rated for 5A and 600V AC/250V DC. Solder termination and through-hole mounting with a vertical orientation. Black, UL94 V-0 flammability rated insulator and housing. Operates from -40°C to 105°C, is glow wire compliant, low halogen, and lead-free.
Voltage Rating600V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43650-0615 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 5A |
| Depth | 5.57mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Height | 9.9mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 21.65mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Packaging | Tray |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Fit 3.0 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43650-0615 Datasheet
Download the complete datasheet for Molex 43650-0615 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

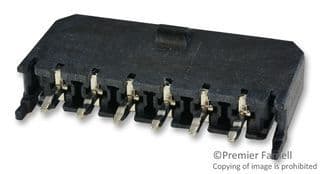

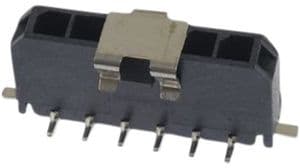

Product Images
