8-position, 1-port, right-angle modular jack with through-hole termination. Features gold-plated bronze contacts and a black nylon, glass, polyamide housing. Rated for 150V and 1.5A, operating between -40°C and 85°C. UL and CSA approved, UL94 V-0 flammability rating, and RoHS compliant.
Voltage Rating150V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43860-0001 technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
14.99mm
Direction
Up
Flammability Rating
UL94 V-0
Gender
Female
Height
0.52inch
Housing Color
Black
Lead Free
Lead Free
Length
15.75mm
Material
Nylon, Glass, Polyamide
Max Current Rating
1.5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
1260
Packaging
Rail/Tube
Pitch
2.04mm
Plating
Tin
Primary Type
MODULAR
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
43860
Shielding
Unshielded
Termination
Through Hole
Voltage Rating
150V
Voltage Rating (AC)
150V
DC Rated Voltage
150V
Width
13.21mm
Compliance
RoHS
Compliant
Datasheet
Molex 43860-0001 Datasheet
Download the complete datasheet for Molex 43860-0001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

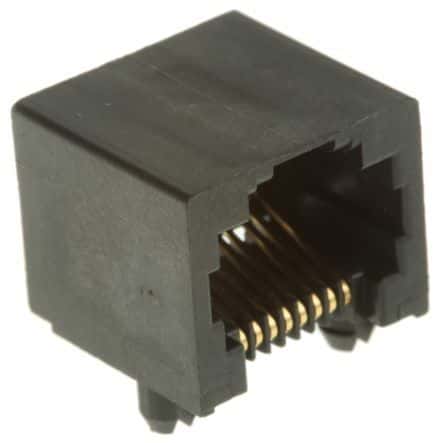

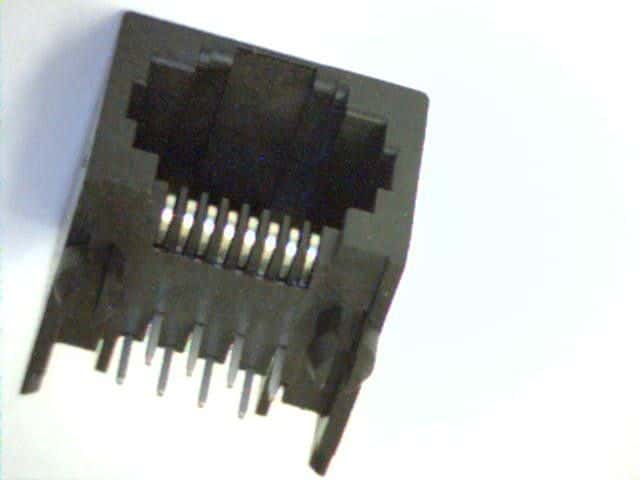

Product Images
