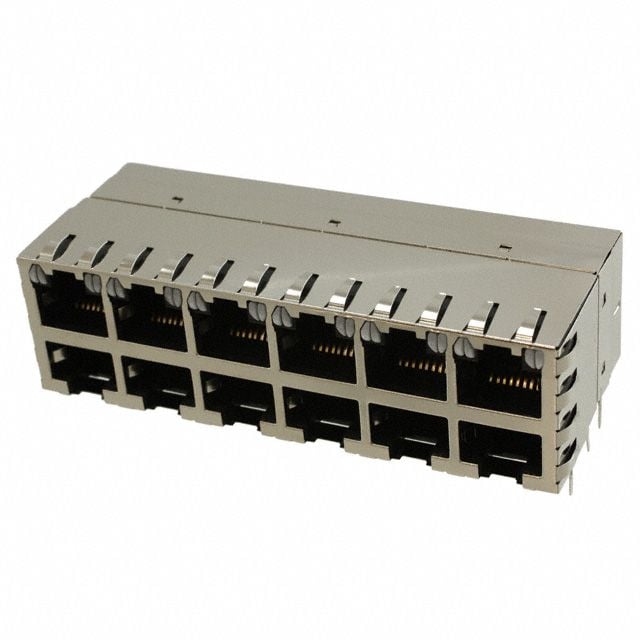

Shielded, right-angle modular jack with 8 positions and 2 rows, featuring gold-plated bronze and brass contacts. This female connector supports a 1.5A current rating and 125V AC/DC voltage rating, operating between -40°C and 80°C. It is UL and CSA approved, UL94 V-0 flammability rated, and lead-free. Designed for through-hole mounting with a 2.54mm pitch, it offers 12 ports and 96 contacts.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 44170-0002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 44170-0002 technical specifications.
| Approvals | UL, CSA |
| Color | Black, Clear |
| Contact Material | Bronze, Brass |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Direction | Up and Down |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 1inch |
| Lead Free | Lead Free |
| Length | 3.43inch |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 96 |
| Number of Ports | 12 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Primary Type | MODULAR |
| RoHS Compliant | Yes |
| Series | 44170 |
| Shielding | Shielded |
| Termination | Through Hole |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| RoHS | Compliant |
