Female signal connector assembly tool featuring a straight, unshielded, non-insulated design. Constructed with a copper alloy contact plated in tin, it supports a current rating of 11A and a maximum voltage rating of 600V AC. This component is suitable for cable mounting and accommodates wire gauges from 20AWG to 18AWG, with a maximum operating temperature of 105°C. It is RoHS compliant and designed for crimp termination.
Current Rating11A
MountingCable
Quick Jump:
Technical Specifications
Molex 44476-1111 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 11A |
| Depth | 3.6mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Height | 4.5mm |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 14.86mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Circuits | 24 |
| Number of Contacts | 1 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 44476 |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 44476-1111 Datasheet
Download the complete datasheet for Molex 44476-1111 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

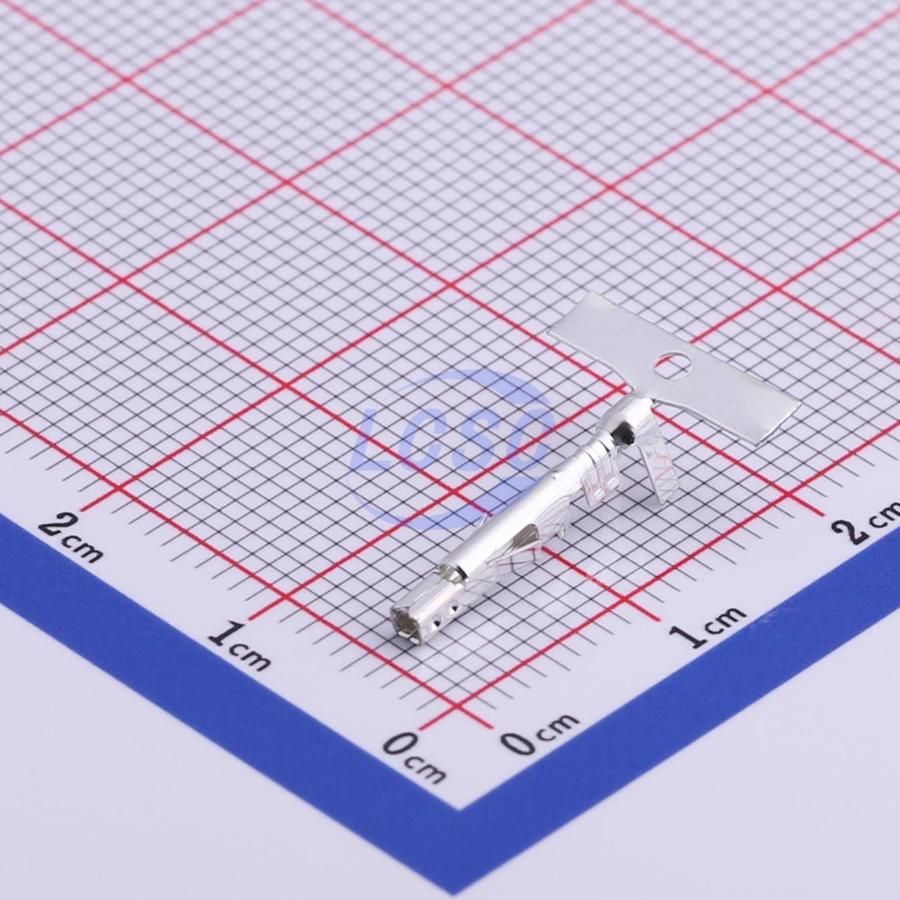

Product Images
