Technical Specifications

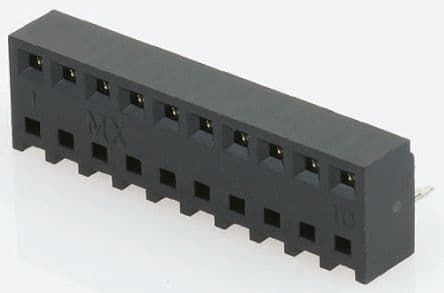

Molex 44812-0015 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 5A |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 15 |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 640 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | 44812 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 44812-0015 Datasheet
Download the complete datasheet for Molex 44812-0015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
