Technical Specifications
Molex 44915-0011 technical specifications.
General
| Approvals | UL |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 22.48mm |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 11.69mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Series | 44915 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
| Width | 8.18mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 44915-0011 Datasheet
Download the complete datasheet for Molex 44915-0011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

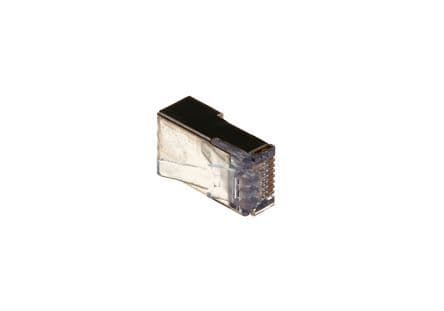

Product Images
