This female signal contact is rated for 600V and 13A current. It features a copper, nickel, and tin contact material with a tin plating. The contact is non-insulated and has a crimp termination. It is available in bulk packaging with 8000 pieces per package. The contact is halogen free and RoHS compliant.
Voltage Rating600V
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
Molex 45750-3112 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Copper, Nickel, Tin |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 13A |
| Gender | Female |
| Halogen Free | Low Halogen |
| Insulation | Non-Insulated |
| Length | 14.83mm |
| Max Current Rating | 12A |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 8000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 45750 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 45750-3112 Datasheet
Download the complete datasheet for Molex 45750-3112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

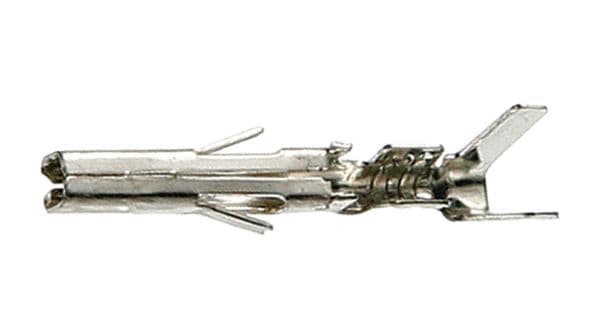

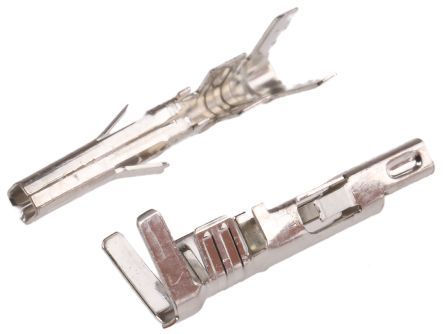

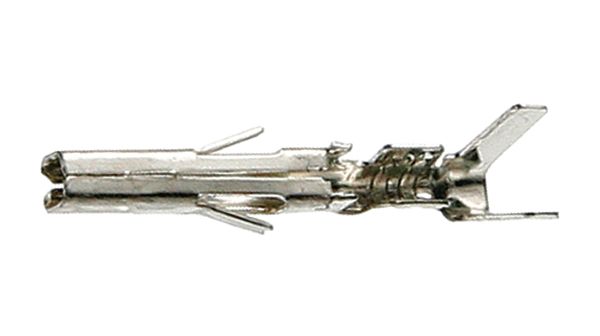

Product Images
