Technical Specifications
Molex 45971-2515 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 2.7A |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Mated Stacking Heights | 15mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 240V |
| Mount | Surface Mount |
| Number of Circuits | 200 |
| Number of Contacts | 200 |
| Number of Positions | 200 |
| Number of Rows | 6 |
| Orientation | Vertical |
| Package Quantity | 210 |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| RoHS Compliant | Yes |
| Series | SEARAY™ 45971 |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 240V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 45971-2515 Datasheet
Download the complete datasheet for Molex 45971-2515 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

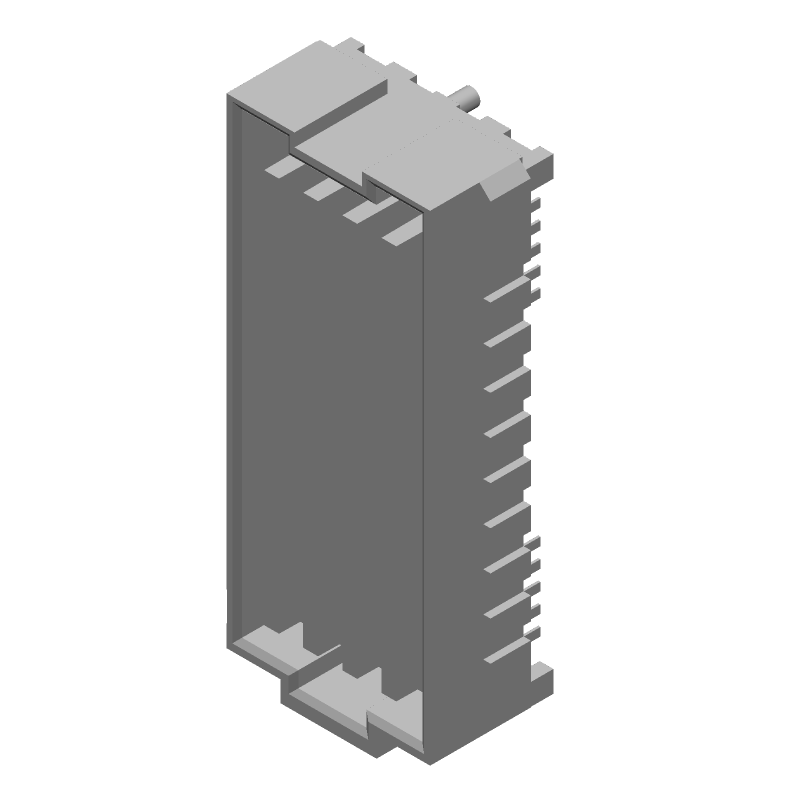

Product Images
