Rectangular connector housing for 4 positions with a 2.54mm pitch. Features female contacts and straight, cable mount orientation. Rated for 4A current and operates between 0°C and 75°C. Constructed with UL94 V-0 flammability rating and low halogen content, this RoHS compliant component is supplied in bulk packaging.
Package100
Current Rating4A
MountingCable
Quick Jump:
Technical Specifications
Molex 47054-1000 technical specifications.
General
| Package/Case | 100 |
| Contact Gender | Female |
| Current Rating | 4A |
| Depth | 12.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Length | 10.8mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Cable |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 14000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 47054 |
| Termination | Crimp |
| Width | 5.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 47054-1000 Datasheet
Download the complete datasheet for Molex 47054-1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

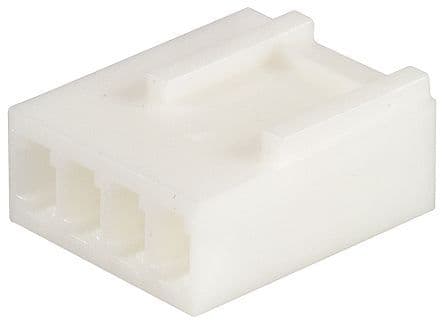

Product Images
