Female right-angle PCB receptacle with 8 contacts in a single row, featuring a 1.1mm pitch. This surface mount terminal offers gold-plated bronze contacts and a 500mA current rating at 5V DC. Designed for operation between -40°C and 85°C, the connector has a black, low halogen insulator and is supplied in tape and reel packaging.
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 47309-3351 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 3.35mm |
| Gender | Female |
| Halogen Free | Low Halogen |
| Length | 11.4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 4200 |
| Packaging | Tape and Reel |
| Pitch | 1.1mm |
| Plating | Gold |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 47309 |
| Termination | SMD/SMT |
| DC Rated Voltage | 5V |
| Width | 5.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 47309-3351 Datasheet
Download the complete datasheet for Molex 47309-3351 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

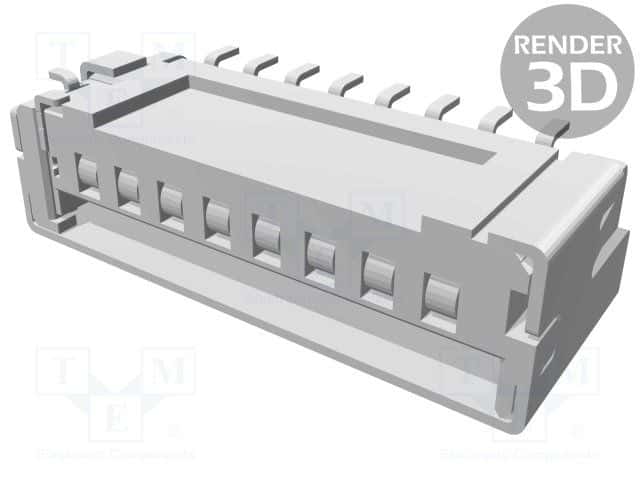

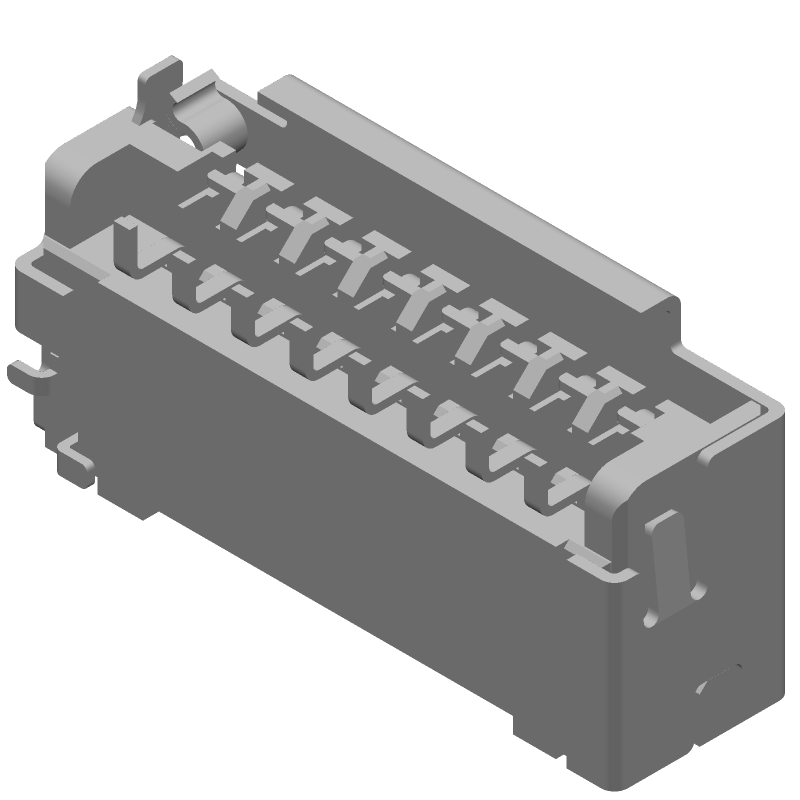

Product Images
