This 5-contact female surface mount header features a copper alloy contact material with gold plating, supporting up to 1.8A of current and 30V of voltage. It has a right-angle orientation and is available in tape and reel packaging. The header operates within a temperature range of -30°C to 85°C and is suitable for USB 2.0 applications. The contacts are gold plated, and the header is halogen-free with low halogen content.
Voltage Rating30V
Current Rating1.8A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 47346-1001 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1.8A |
| Gender | Female |
| Halogen Free | Low Halogen |
| Height | 3.19mm |
| Length | 7.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 0.65mm |
| Plating | Gold |
| Reach SVHC Compliant | No |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 47346-1001 Datasheet
Download the complete datasheet for Molex 47346-1001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

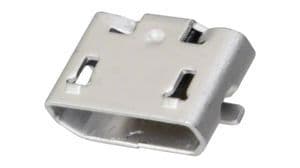

Product Images
