Technical Specifications
Molex 47948-0001 technical specifications.
General
| Bandwidth | 2.4GHz |
| Package/Case | SMD/SMT |
| Frequency | 2.4835GHz |
| Gain | 3.6dB |
| Halogen Free | Low Halogen |
| Height | 4mm |
| Impedance | 50R |
| Length | 3mm |
| Max Frequency | 2.4835GHz |
| Min Frequency | 2.4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Mount | Surface Mount |
| Number of Bands | 1 |
| Package Quantity | 1800 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Return Loss | -7dB |
| Series | 47948 |
| Termination | SMD/SMT |
| Thickness | 4mm |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 47948-0001 Datasheet
Download the complete datasheet for Molex 47948-0001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

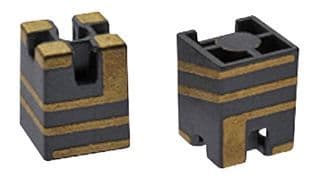

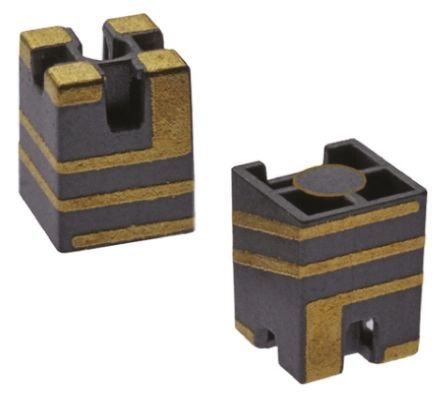

Product Images
