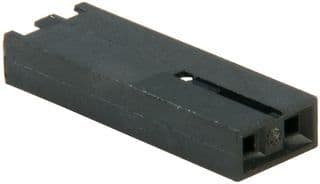

2-contact, 1-row female receptacle with a 2.54mm pitch, designed for crimp termination. This board connector features a straight orientation and a 3A current rating at 250V. Constructed with a black polyester insulator, it offers a locking mechanism and is UL94 V-0 flammability rated. Operating temperature range is -40°C to 105°C, with tin-plated female socket contacts.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 50-57-9002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Color | Black |
| Contact Gender | Female |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 15.24mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Height | 2.51mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 5.05mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SL 70066 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 2.51mm |
| Wire/Cable Gauge | 22AWG |
| RoHS | Compliant |
