6-contact, 1-row, female header connector with a 2.54mm pitch. Features a straight, free-hanging or panel mount orientation with crimp termination. Rated for 250V and 3A, with a black polyester insulator and a latching mechanism. Operating temperature range of -40°C to 105°C, UL94 V-0 flammability rating, and RoHS compliant.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Panel, Cable
Quick Jump:
Technical Specifications
Molex 50-57-9406 technical specifications.
General
| Approvals | UL, CSA |
| Color | Black |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 15.24mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Height | 6.58mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 15.21mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Panel, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C-Grid® SL™ 70066 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 6.58mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 50-57-9406 Datasheet
Download the complete datasheet for Molex 50-57-9406 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

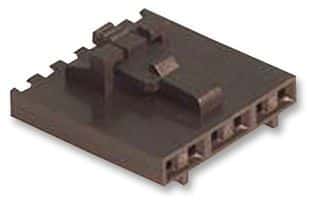

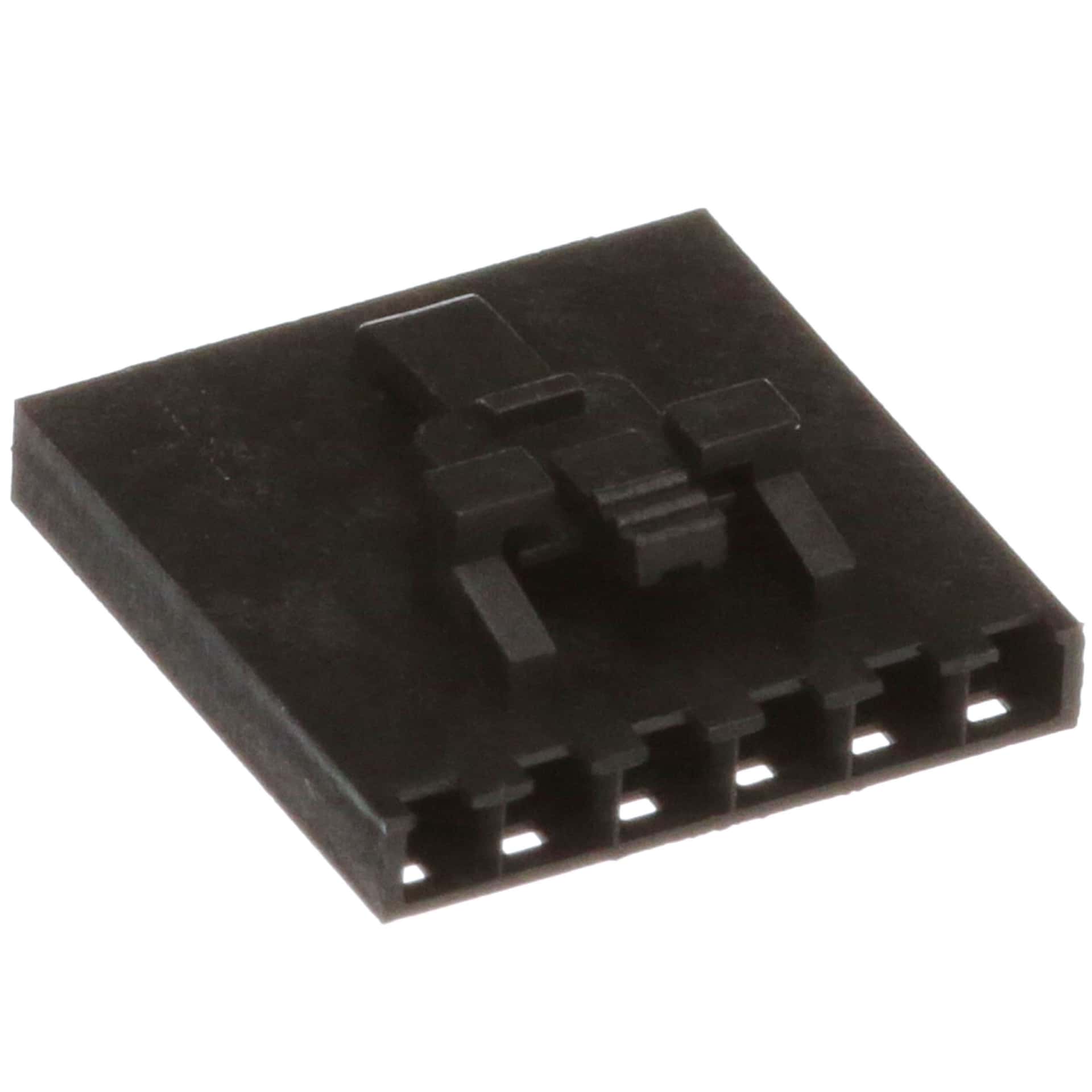

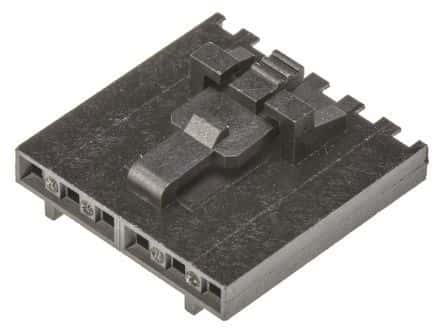

Product Images
