20-position, single-row receptacle connector with a 2.54mm pitch, designed for free-hanging, panel, or cable mounting. Features a straight orientation, female socket contact type, and a 3A current rating with a 250V voltage rating. Constructed from black polyester material with UL94 V-0 flammability rating, operating between -40°C and 105°C. This RoHS compliant connector includes a latching mechanism for secure mating.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Panel, Cable
Quick Jump:
Technical Specifications
Molex 50-57-9420 technical specifications.
General
Color
Black
Contact Type
Female Socket
Current Rating
3A
Depth
15.24mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Glow Wire Compliant
Non-compliant
Housing Color
Black
Lead Free
Contains Lead
Lead Pitch
2.54mm
Length
50.77mm
Material
Polyester
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Panel, Cable
Number of Contacts
20
Number of Positions
20
Number of Rows
1
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
70066
Termination
Crimp
Voltage Rating
250V
Width
6.58mm
Compliance
RoHS
Compliant
Datasheet
Molex 50-57-9420 Datasheet
Download the complete datasheet for Molex 50-57-9420 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

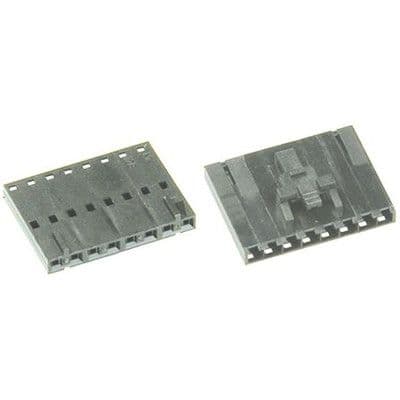

Product Images
