6-circuit MLX™ 42022 series receptacle with straight orientation, featuring a 2.13mm diameter pin and socket contact system. This natural colored, UL94 V-2 flammability rated component supports a 20A current rating and operates within a -55°C to 105°C temperature range. Designed for panel or cable mounting with crimp termination, it offers a 6.35mm pitch and 0.25inch row spacing.
Current Rating20A
MountingPanel, Cable
Quick Jump:
Technical Specifications
Molex 50-84-2062 technical specifications.
General
| Color | Natural |
| Contact Gender | Female |
| Contact Type | Male or Female |
| Current Rating | 20A |
| Depth | 27.7mm |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| Length | 13.97mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 6.35mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.25inch |
| Series | MLX™ 42022 |
| Termination | Crimp |
| Width | 28.45mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 50-84-2062 Datasheet
Download the complete datasheet for Molex 50-84-2062 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

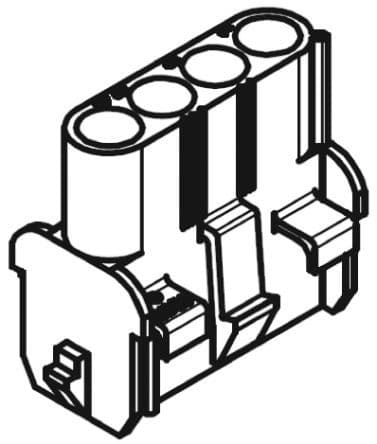

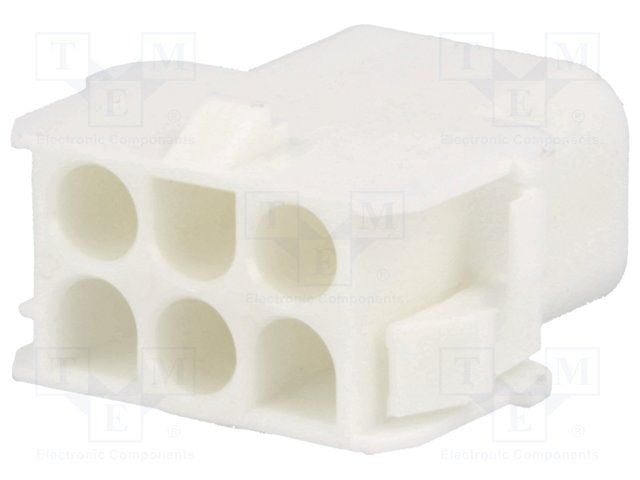

Product Images
