Shielded, vertical receptacle connector with 5 contacts and 5 positions, designed for telecom and datacom applications. Features gold-plated bronze and copper alloy contacts, a 1A current rating, and a 30V AC/DC voltage rating. This through-hole mounted component has a 1.6mm pitch and a solder termination, with a UL94 V-0 flammability rating. Operating temperature range is 0°C to 85°C.
Voltage Rating30V
Current Rating1A
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications

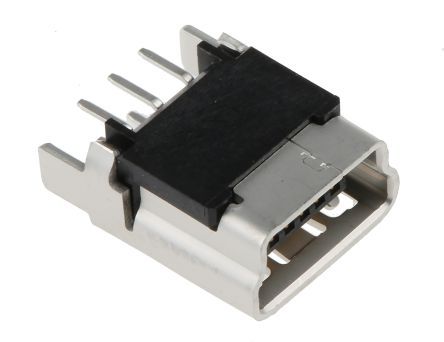

Molex 500075-1517 technical specifications.
General
| Color | Black |
| Contact Material | Bronze, Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 4.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Height | 7.7mm |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Length | 7.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 3.03kV |
| Mount | Through Hole, Vertical |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tray |
| Pitch | 1.6mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 500075 |
| Shielding | Shielded |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 30V |
| Weight | 0.018393oz |
Compliance
| RoHS | Compliant |
Datasheet
Molex 500075-1517 Datasheet
Download the complete datasheet for Molex 500075-1517 to view detailed technical specifications.
No datasheet is available for this part.
