5-position shrouded header with a 1mm pitch, designed for surface mount applications. Features male pin contacts with tin plating and bronze material, offering a 1A current rating and 50V AC voltage rating. The nylon housing is UL94 V-0 flammability rated, operating within a -40°C to 85°C temperature range. Packaged in tape and reel for efficient assembly.
Voltage Rating50V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 501331-0507 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 3.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 7.24mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1100 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 501331 |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 501331-0507 Datasheet
Download the complete datasheet for Molex 501331-0507 to view detailed technical specifications.
No datasheet is available for this part.

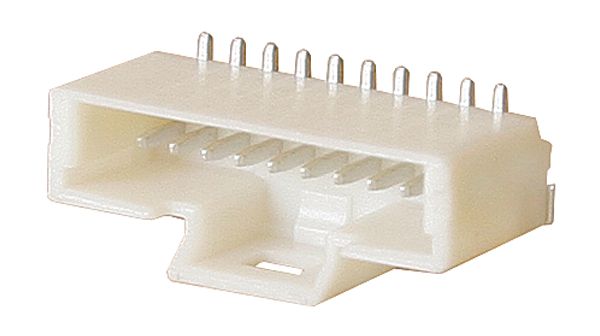

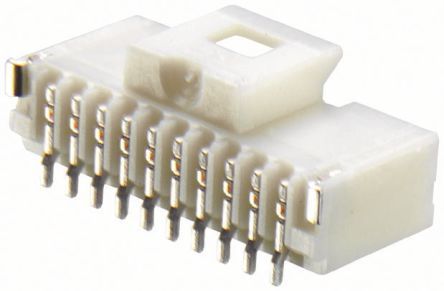

Product Images
