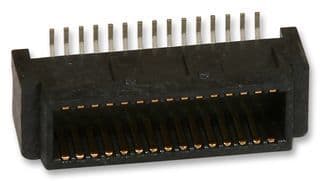

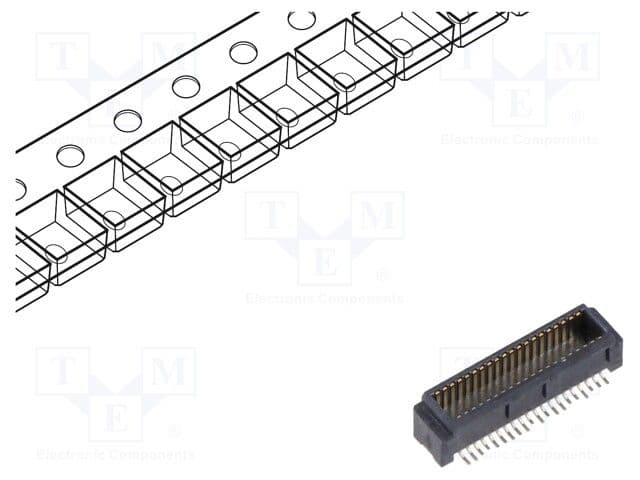

40-contact, 2-row male header for board-to-board applications. Features a 0.5mm pitch and straight, surface mount termination with gold-plated copper alloy contacts. Operates within a -40°C to 105°C temperature range and has a 50V AC maximum voltage rating. This vertical plug connector is black, low halogen, and ROHS compliant.
Quick Jump:
Technical Specifications
Molex 5019204001 technical specifications.
General
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Gold |
| Depth | 3.1mm |
| ELV | Compliant |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Pitch | 0.5mm |
| Length | 12.3mm |
| Material | Copper Alloy |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Number of Circuits | 40 |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Packaging | Cut Tape |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Row Spacing | 4mm |
| Series | SlimStack |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 5019204001 Datasheet
Download the complete datasheet for Molex 5019204001 to view detailed technical specifications.
