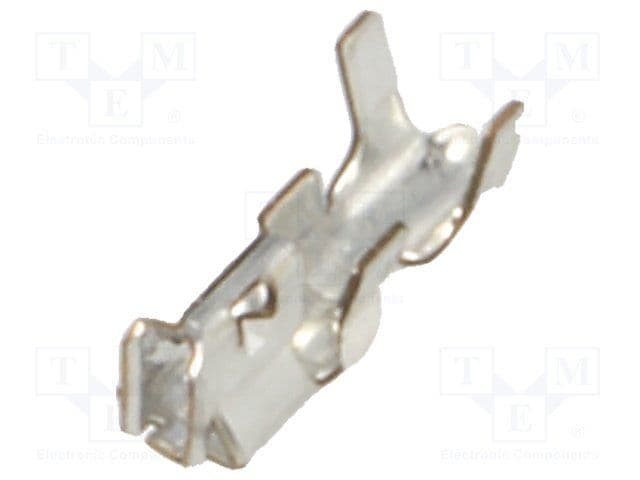

Low halogen, lead-free wire terminal for signal applications. Features bronze contacts with tin plating, rated for 2A and 125V. Designed for straight orientation, cable mounting, and crimp termination. Accommodates wire gauges from 24AWG to 30AWG. Supplied on tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 50212-8000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 2A |
| Depth | 1.88mm |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Current Rating | 2A |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 40000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Latch |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 30AWG |
| RoHS | Compliant |
Download the complete datasheet for Molex 50212-8000 to view detailed technical specifications.
