The Molex DuraClik 502351-0300 is a 3A, 125V female socket receptacle with insulated contacts and a maximum operating temperature of 105°C. It is designed for free hanging, cable mounting and is available in a bulk packaging quantity of 24000. The receptacle is compliant with RoHS regulations and has a 2mm pitch. It is not compliant with glow wire regulations.
Voltage Rating125V
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 502351-0300 technical specifications.
General
| Color | White, Natural |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Insulation | Insulated |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 24000 |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DuraClik™ 502351 |
| Termination | Crimp |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 502351-0300 Datasheet
Download the complete datasheet for Molex 502351-0300 to view detailed technical specifications.
No datasheet is available for this part.

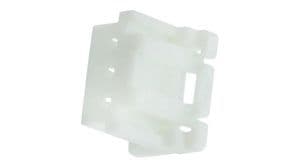

Product Images
