8 Position, 2mm pitch shrouded header, right angle surface mount, male pin contacts. Features copper alloy contacts with tin plating, rated for 3A and 125V. Nylon insulation in natural color, UL94 V-0 flammability. Operating temperature range of -40°C to 105°C. Tape and reel packaging for automated assembly.
Voltage Rating125V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 502352-0800 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 9.4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Length | 20mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 2800 |
| Packaging | Tape and Reel |
| Pitch | 2mm |
| Primary Type | Rectangular |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DuraClik 502352 |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 502352-0800 Datasheet
Download the complete datasheet for Molex 502352-0800 to view detailed technical specifications.
No datasheet is available for this part.

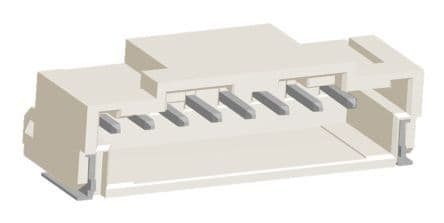

Product Images
