1.25mm pitch wire-to-board receptacle with 10 positions and 10 circuits. Features a vertical, surface mount orientation with solder termination and a secure CLIK-Mate™ connection. Constructed with a copper alloy contact material and tin plating, offering a 1A current rating and 50V voltage rating. The natural resin insulation material ensures UL94 V-0 flammability rating, operating within a -40°C to 85°C temperature range. Packaged on tape and reel for efficient assembly.
Voltage Rating50V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 502382-1070 technical specifications.
General
| Color | White |
| Contact Finish - Mating | TIN |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper, Tin |
| Contact Plating | Tin |
| Contact Type | Forked |
| Current Rating | 1A |
| Depth | 5.95mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Resin |
| Lead Pitch | 1.25mm |
| Length | 15.85mm |
| Material | Polybutylene |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Packaging | Tape and Reel |
| Pitch | 1.25mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CLIK-Mate 502382 |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| Weight | 0.016oz |
Compliance
| RoHS | Compliant |
Datasheet
Molex 502382-1070 Datasheet
Download the complete datasheet for Molex 502382-1070 to view detailed technical specifications.
No datasheet is available for this part.

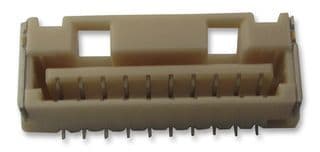

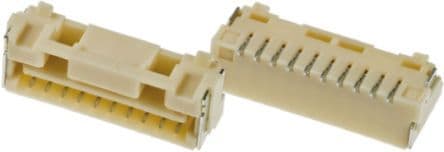

Product Images
