20-position, 2-row female board-to-board header with a 0.4mm pitch. Features gold-plated bronze contacts and a 1mm mated stacking height. Designed for surface mount (SMD/SMT) termination with a vertical orientation. Rated for 50V AC and 300mA current. Compliant with REACH SVHC and RoHS standards, and low halogen. Packaged in tape and reel for automated assembly.
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 502430-2030 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 300mA |
| ELV | Compliant |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Mated Stacking Heights | 1mm |
| Material | Bronze |
| Mount | Surface Mount |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | SlimStack™ 502430 |
| Stack Height | 1mm |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 502430-2030 Datasheet
Download the complete datasheet for Molex 502430-2030 to view detailed technical specifications.
No datasheet is available for this part.

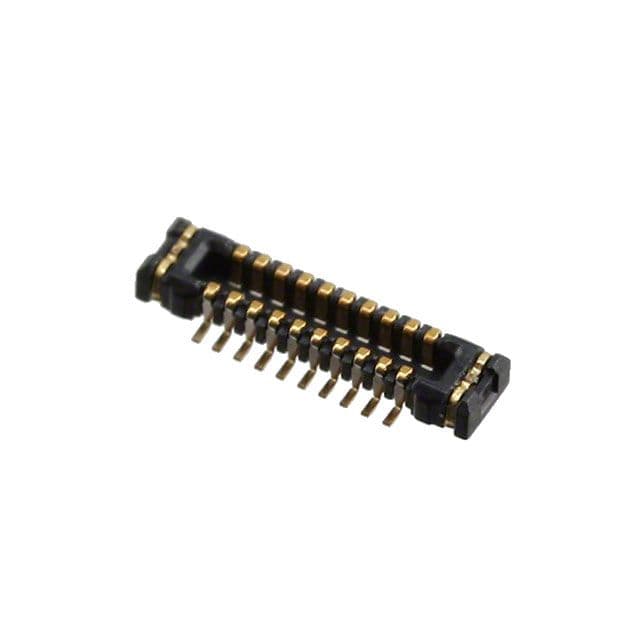

Product Images
