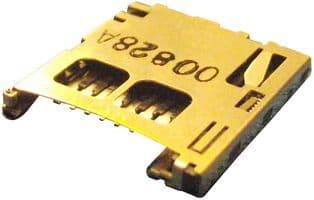

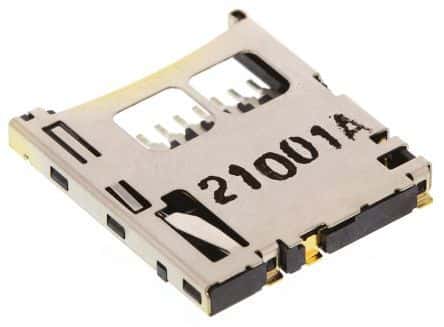

Right-angle, surface-mount microSD card socket featuring 8 contacts and 8 circuits. This female connector utilizes a 1.1mm pitch and copper alloy contacts with gold plating, rated for 0.5A per contact and a voltage of 10V (1.01kV DC max). Operating within a temperature range of -25°C to 85°C, it offers a low halogen and lead-free design, packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 5025700893 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Depth | 15.5mm |
| Gender | Female |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Length | 13.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 1.01kV |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 1.1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | 502570 |
| Termination | Solder |
| Voltage Rating | 10V |
| Width | 1.8mm |
| RoHS | Compliant |
