Right-angle, surface-mount PCB connector with a 1.1mm pitch, designed for microSD card applications. Features 8 circuits and 8 contacts made from copper alloy with gold plating. Operates within a temperature range of -25°C to 85°C, with a low halogen content. Termination is via solder, and the component measures 14.6mm in length, 1.8mm in width, and 16mm in depth. Packaged on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 5027740891 technical specifications.
General
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Depth | 16mm |
| Gender | Male |
| Halogen Free | Low Halogen |
| Length | 14.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 1.1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | microSD Card |
| Termination | Solder |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 5027740891 Datasheet
Download the complete datasheet for Molex 5027740891 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

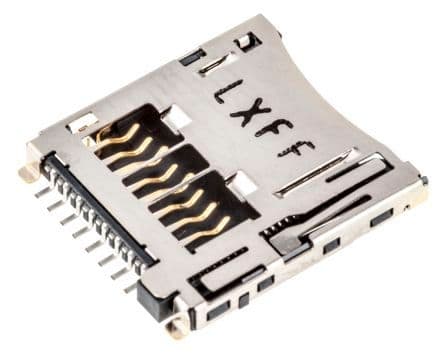

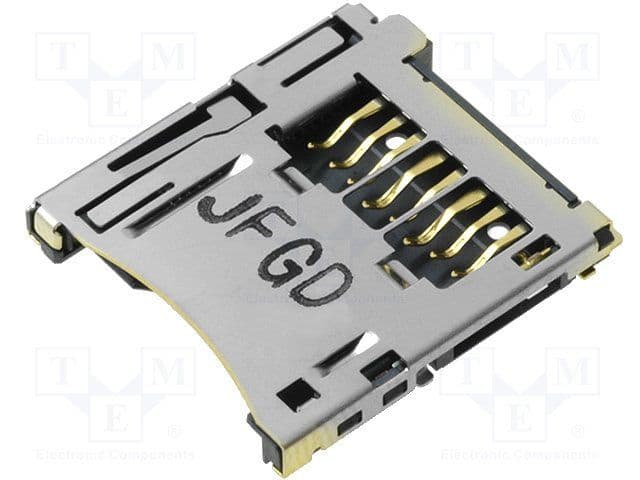

Product Images
