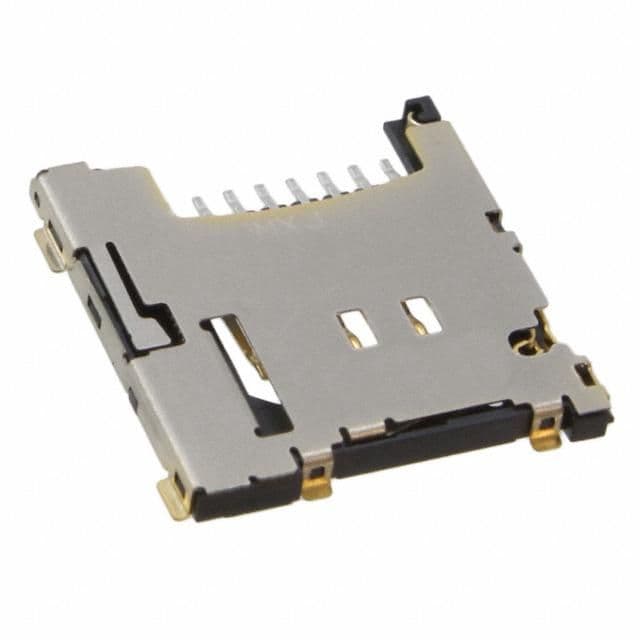

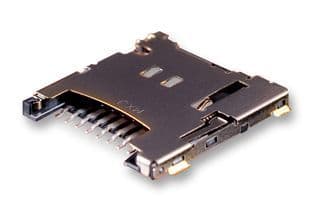

This Molex 503182-1853 connector features 8 copper contacts with gold plating, suitable for surface mount applications. It has a right angle orientation and is available in a cut tape packaging. The connector is lead free and compliant with RoHS regulations. Operating temperature range is from -25°C to 85°C. The connector has a pitch of 1.1mm and measures 14.95mm in length and 14.14mm in width.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 503182-1853 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Copper, Copper Alloy |
| Contact Plating | Gold |
| Depth | 1.45mm |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 14.95mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Cut Tape |
| Pitch | 1.1mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 503182 |
| Termination | SMD/SMT |
| Width | 14.14mm |
| RoHS | Compliant |
