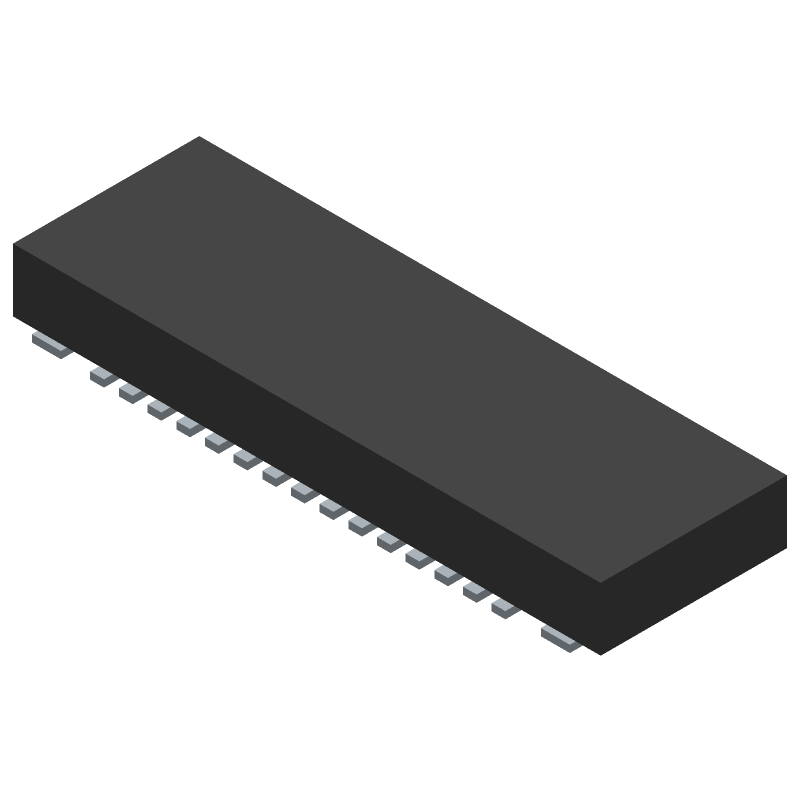

This 30-contact female surface mount header from Molex has a liquid crystal polymer (LCP) insulator and a gold (Au) contact finish termination. It is rated for a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The header is designed for commercial reliability and has a rated current of 0.3A. It features a dielectric withstanding voltage of 125VAC and is available in a shrouded and unshrouded configuration.
Checking distributor stock and pricing after the page loads.
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Termination Type | SURFACE MOUNT |
| Insulator Material | LIQUID CRYSTAL POLYMER (LCP) |
| Total Number of Contacts | 30 |
| Contact Gender | FEMALE |
| Reliability | COMMERCIAL |
| Mounting Style | STRAIGHT |
| Rated Current (Signal) | 0.3 |
| Dielectric Withstanding Voltage | 125VAC |
| Insulator Color | BLACK |
| Number Of PCB Rows | 2 |
| Number Of Connectors | ONE |
| Contact Finish Termination | Gold (Au) |
| RoHS | Yes |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | True |
