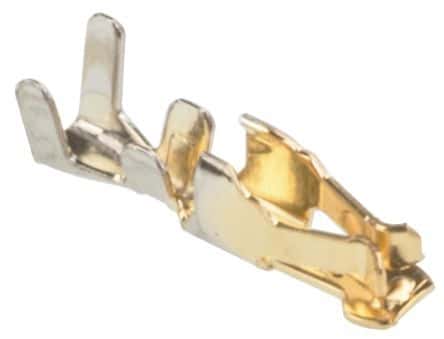

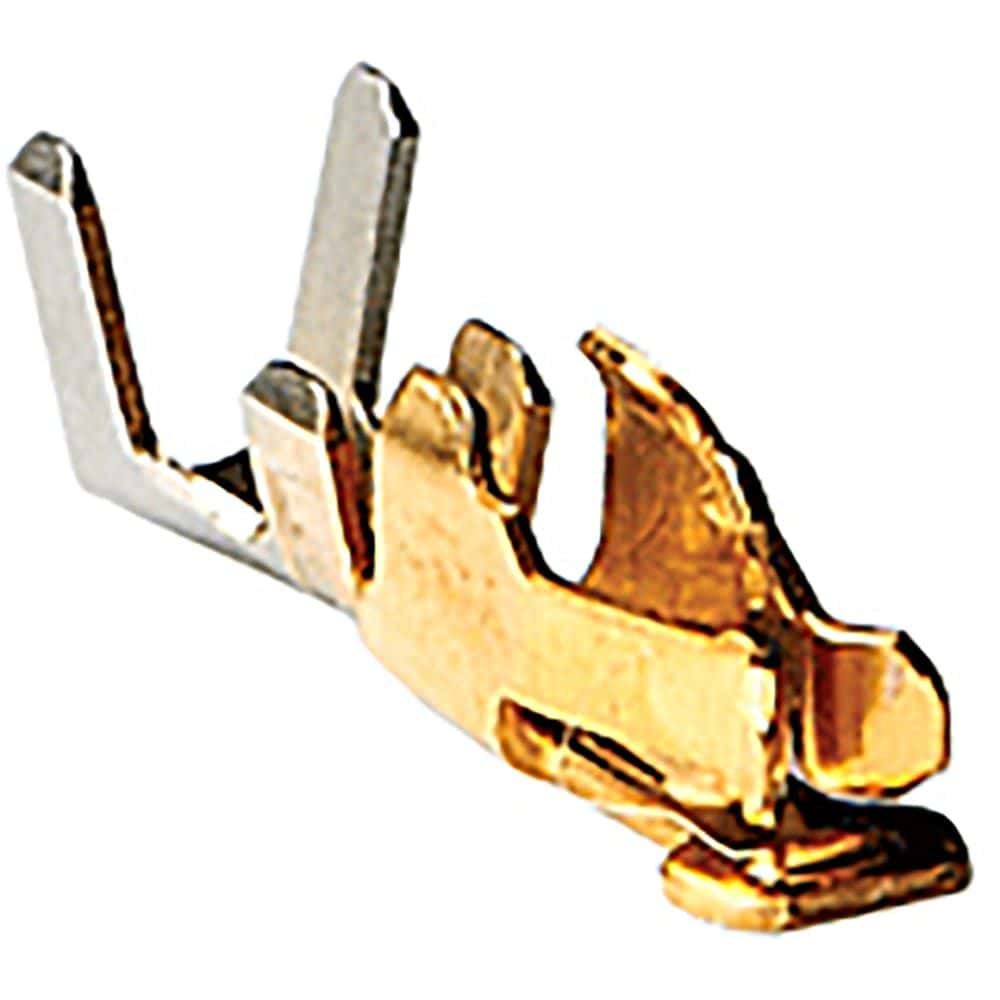

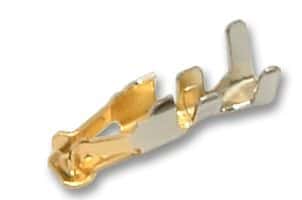

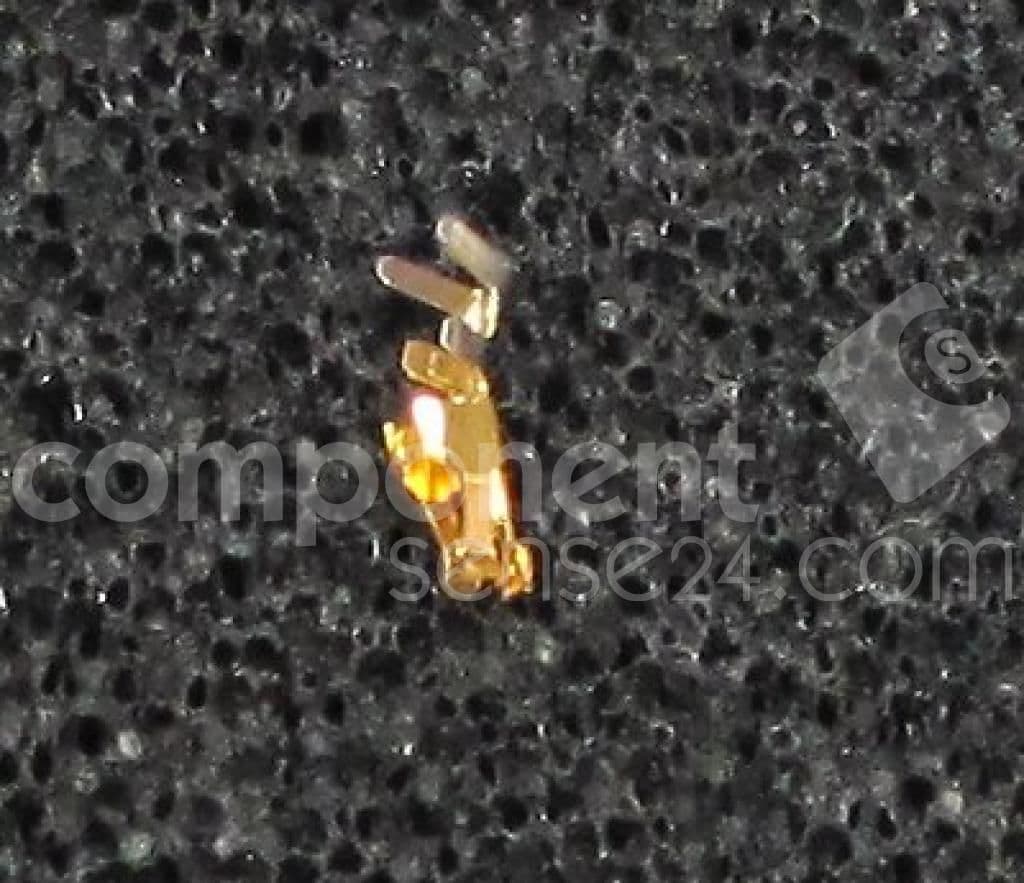

Receptacle wire terminal for through-hole and cable mounting, featuring a straight, 2-row configuration with 16 signal contacts. Constructed with bronze and brass contact materials, plated with gold for enhanced conductivity. Offers a current rating of 1A (max 2A) and a voltage rating of 125V AC/DC (max 250V AC). Designed for wire gauges from 30AWG to 24AWG, with a maximum wire/cable diameter of 0.56mm. Operates within a temperature range of -55°C to 125°C. This low halogen, lead-free component is RoHS compliant and supplied in bulk packaging.
Sign in to ask questions about the Molex 50394-8100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 50394-8100 technical specifications.
| Package/Case | 100 |
| Contact Material | Bronze, Brass, Gold |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 1A |
| Depth | 1.88mm |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Height | 2mm |
| Housing Color | Black |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 6.25mm |
| Material | Bronze |
| Max Current Rating | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, Cable |
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 10000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Milli-Grid |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Diameter | 0.56mm |
| Wire/Cable Gauge | 30AWG |
| RoHS | Compliant |
