Right-angle surface mount FFC/FPC connector featuring 39 circuits and 39 contacts on a 0.4mm pitch. This receptacle utilizes gold-plated bronze contacts and a black nylon, glass, and polyamide housing with a grey actuator. Rated for 50V and 10 mating cycles, it operates between -25°C and 85°C and is RoHS compliant with a UL94 V-0 flammability rating.
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 504070-3991 technical specifications.
General
| Actuator Color | Grey |
| Actuator Material | Nylon, Glass, Polyamide |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Mating Cycles | 10 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Circuits | 39 |
| Number of Contacts | 39 |
| Number of Positions | 39 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Cut Tape |
| Pitch | 0.4mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | BackFlip, Easy-On 504070 |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 504070-3991 Datasheet
Download the complete datasheet for Molex 504070-3991 to view detailed technical specifications.
No datasheet is available for this part.

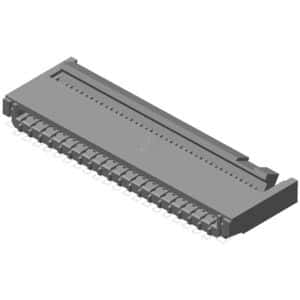

Product Images
