Molex
51065-0500
Board Connector, 5 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator, Receptacle,
MountingCable
Quick Jump:
Technical Specifications
Molex 51065-0500 technical specifications.
General
| Contact Gender | Female |
| Depth | 5.7mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Lead Free |
| Length | 11.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 51065 |
| Termination | Crimp |
| Width | 3.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51065-0500 Datasheet
Download the complete datasheet for Molex 51065-0500 to view detailed technical specifications.
No datasheet is available for this part.

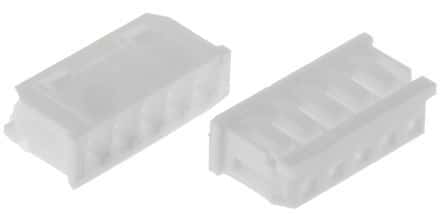

Product Images
