Molex
51065-0600

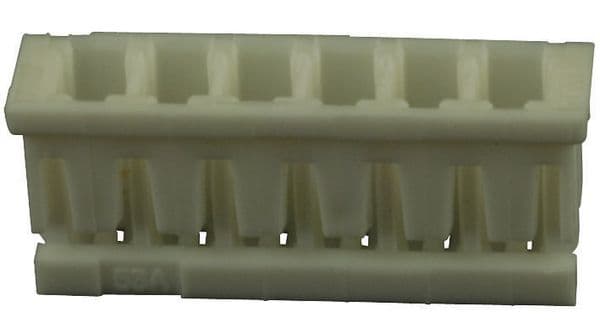

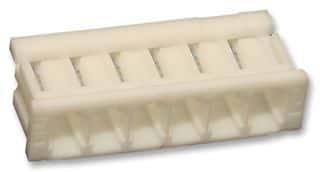

Board Connector, 6 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Receptacle
Voltage Rating125V
Current Rating2A
MountingCable
Quick Jump:
Technical Specifications
Molex 51065-0600 technical specifications.
General
| Color | Natural |
| Contact Gender | Female |
| Current Rating | 2A |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 51065 |
| Termination | Crimp |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51065-0600 Datasheet
Download the complete datasheet for Molex 51065-0600 to view detailed technical specifications.
No datasheet is available for this part.
