6-position, 1.25mm pitch female receptacle connector with a low-profile, straight orientation. Features female socket contacts and a PBT/Polyester body material in natural color. Designed for free-hanging, cable mounting with crimp termination. Operating temperature range of -40°C to 85°C.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 51146-0600 technical specifications.
General
| Body Material | PBT, Polyester |
| Color | Natural |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Depth | 6.2mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Contains Lead |
| Length | 10.72mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 1.25mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PanelMate™ 51146 |
| Termination | Crimp |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51146-0600 Datasheet
Download the complete datasheet for Molex 51146-0600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

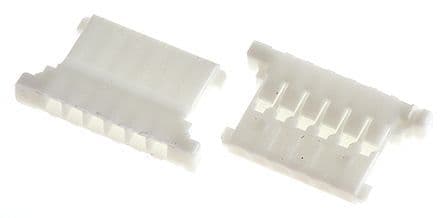

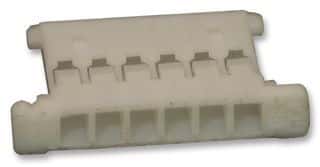

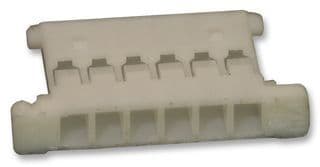

Product Images
