Molex
51281-0594
Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE
Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE
Voltage Rating50V
Current Rating500mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Molex 51281-0594 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Molex 51281-0594 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| ELV | Compliant |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Material | Bronze |
| Number of Circuits | 5 |
| Number of Contacts | 25 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 51281 |
| Stackable | No |
| Termination | SMD/SMT |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51281-0594 Datasheet
Download the complete datasheet for Molex 51281-0594 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

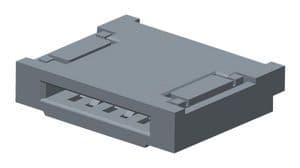

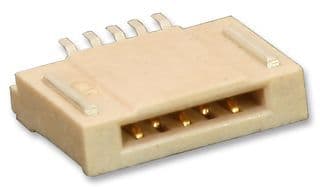

Product Images
