100-contact, 2-row, female receptacle board connector with a 0.4mm pitch. Features straight, surface mount termination with gold-plated bronze contacts. Rated for 300mA current and 50V AC/DC, with a maximum operating temperature of 85°C. Includes a black, low halogen insulator and locking mechanism, compliant with RoHS standards.
Voltage Rating50V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 51338-1074 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 300mA |
| Depth | 3.4mm |
| Gender | Receptacle |
| Housing Color | Black |
| Length | 23.1mm |
| Mated Stacking Heights | 1.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Mount | Surface Mount |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 51338 |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51338-1074 Datasheet
Download the complete datasheet for Molex 51338-1074 to view detailed technical specifications.
No datasheet is available for this part.

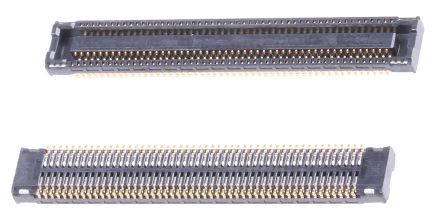

Product Images
