0.4mm pitch, 24-position, 2-row vertical stacking board connector receptacle. Features gold-plated bronze contacts, surface mount termination, and a 300mA current rating. Operates within a -25°C to 85°C temperature range and has a 50V AC voltage rating. RoHS compliant and low halogen. Supplied in tape and reel packaging.
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 51338-2474 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 300mA |
| ELV | Compliant |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 51338 |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51338-2474 Datasheet
Download the complete datasheet for Molex 51338-2474 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

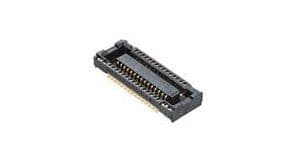

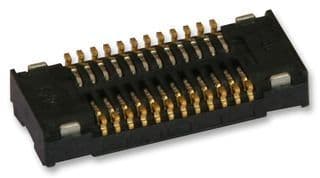

Product Images
