Technical Specifications
Molex 52043-1219 technical specifications.
General
| Contact Location | Bottom |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Lead Pitch | 1mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Circuits | 11 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 750 |
| Packaging | Tray |
| Pitch | 1mm |
| RoHS Compliant | Yes |
| Series | 52043 |
| Termination | Through Hole |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52043-1219 Datasheet
Download the complete datasheet for Molex 52043-1219 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

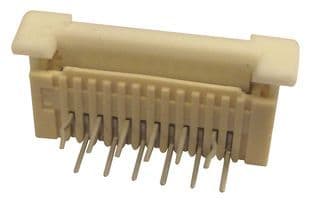

Product Images
