14-position, 2.5mm pitch FFC/FPC board connector with a right-angle, through-hole termination. Features a non-ZIF, top contact location with bronze contacts plated in tin. Rated for 500mA current and 200V DC, operating between -40°C and 85°C. Housing is grey, UL94 V-0 flammability rated, and the component is RoHS compliant.
Voltage Rating200V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52044-1445 technical specifications.
General
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Depth | 9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Grey |
| Length | 20.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 750 |
| Packaging | Tray |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52044 |
| Stackable | No |
| Termination | Through Hole |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52044-1445 Datasheet
Download the complete datasheet for Molex 52044-1445 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

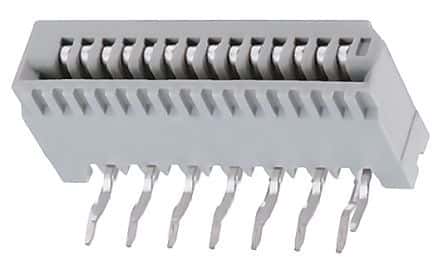

Product Images
