Right-angle FFC/FPC connector, 1mm pitch, 7 circuits, female, top contact location. Features bronze contacts with tin-silver plating, rated for 1A current and 125V voltage. Operates from -40°C to 85°C, with a UL94 V-0 flammability rating. Housing is white, with dimensions of 13.3mm length and 7.6mm depth. Supplied in tape and reel packaging, 1000 units per package.
Voltage Rating125V
Current Rating1A
Quick Jump:
Technical Specifications
Molex 52207-0733 technical specifications.
General
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin, Silver
Current Rating
1A
Depth
7.6mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
White
Length
13.3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Circuits
7
Number of Contacts
7
Number of Positions
7
Number of Rows
1
Orientation
Right Angle
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1mm
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
52207
Stackable
No
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
Molex 52207-0733 Datasheet
Download the complete datasheet for Molex 52207-0733 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

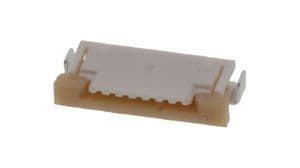

Product Images
