1mm pitch, right-angle, surface-mount receptacle with 10 contacts in a single row. Features bronze contacts with gold plating, rated for 1A and 125V. Operates within a -30°C to 85°C temperature range and boasts a UL94 V-0 flammability rating. This component is RoHS and REACH compliant, supplied in tape and reel packaging.
Voltage Rating125V
Current Rating1A
Quick Jump:
Technical Specifications
Molex 52207-1060 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52207 |
| Stackable | No |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52207-1060 Datasheet
Download the complete datasheet for Molex 52207-1060 to view detailed technical specifications.
No datasheet is available for this part.

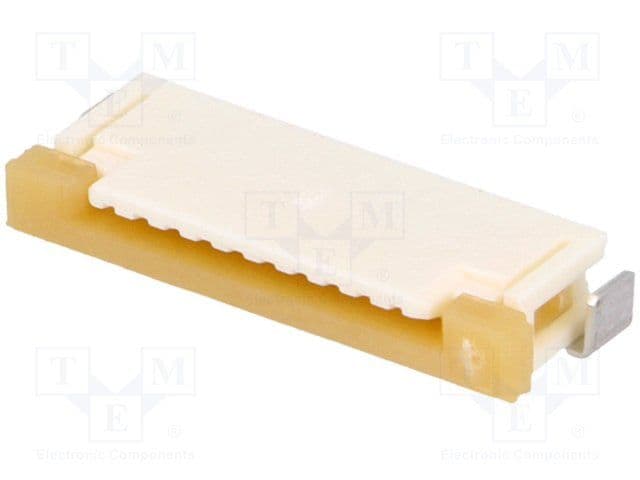

Product Images
