22-position, 1mm pitch FPC connector with right-angle orientation. Features gold-plated bronze contacts and a polyphenylene actuator. Rated for 1A current and 125V voltage, operating between -30°C and 85°C. Compliant with RoHS and UL94 V-0 flammability standards.
Voltage Rating125V
Current Rating1A
Quick Jump:
Technical Specifications
Molex 52207-2260 technical specifications.
General
| Actuator Material | Polyphenylene |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Number of Circuits | 22 |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 52207 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52207-2260 Datasheet
Download the complete datasheet for Molex 52207-2260 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

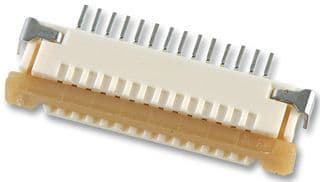

Product Images
