Right angle, surface mount receptacle with 4 contacts in a single row, featuring a 1mm pitch. This connector offers a 500mA current rating and a 50V voltage rating, with a maximum operating temperature of 85°C. Constructed with bronze contacts plated in tin and a polyphenylene actuator, it provides a locking mechanism and is rated UL94 V-0 for flammability. Designed for lead-free applications, it supports up to 30 mating cycles.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52271-0479 technical specifications.
General
| Actuator Material | Polyphenylene |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Depth | 6.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Material | Bronze |
| Mating Cycles | 30 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52271 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52271-0479 Datasheet
Download the complete datasheet for Molex 52271-0479 to view detailed technical specifications.
No datasheet is available for this part.

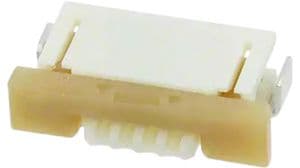

Product Images
